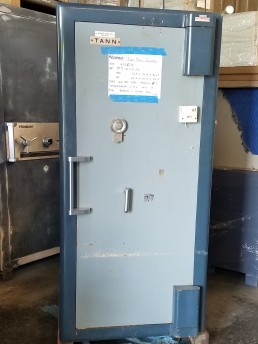

John Tann TRTL 30x6 EQ Model 6325/19

 SAFE DETAILS

BODY

The body thickness, includingthe back, is a constant 4.5" strongly reinforced at connecting areas. The construction employs the latest cold forming techniques coupled with advanced welding methods to form a jointless outer shell of tough steel plate. The inner body is similarly joined to the outer shell in such a way that the joint is as strong as the parent metal. The body which contains over 1 3/8" of metal is constructed from a series of interlocking structures which resists delamination techniques. The construction consists of a tough outer stell plate, behind which is a reinforced drill and torch resistant monolith approximately 3" thick connected to the alloy protection metal via a mattress of heavy reinforcing bars which are interwoven at the corners for additional strength.

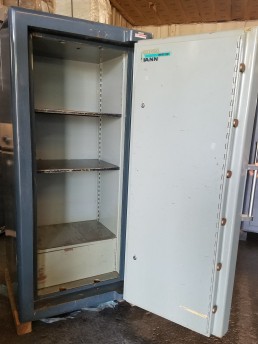

DOOR

The door has an overall thickness of 7" with not less then 4 1/4" of protection over the locks and vital boltwork. A total of over 3 1/4" of special alloy, metal carbides, tough steel, and compound metal plates gives extreme resistance to drills, all forms of oxygen cutting impact, and other forms of attack. A unique feature is the method by which the main protective material is securely attached to the front and rear structural plates of the door assembly. The door swings easily on self-lubricating bearings in modern style carriages.

LOCK AND BOLTWORK

The door is secured with 1.5" diameter bright drawn steel bolts locking behind a solid steel rebate, which is an integral part of the inner body of the safe. The rear edge of the door is secured by a solid steel continuous bar locking behind a similar rebate. The door is secured by one John Tann Series 19 high security keylock and one 4 wheel bank type combination lock, complete with stainless steel detachable bitted keys in triplicate. The precision engineered boltwork incorprates special devices designed to give protection by re-locking the boltwork mechanism in the event of attacks which produce heat, displaces the lock or attempts to cut a hole in the door.

ALTERNATIVE LOCKING ARRANGEMENTS

The safe may be controlled by twin Series 19 keylocks or by twin four wheel combination locks. Two movement timelocks can be supplied to act in conjunction with any locking arrangement.

FURNITURE FITTINGS AND FINISH

Stainless steel pull handle and brackets. Matching satin finish chrome escutcheons, bolt throwing handle and blinder shield if fitted. Two-tone modern finish in mid and dark grey gives a style as modern as it is dignifies. A wide range of fittings including drawers, cupboards and adjustable shelves is available.

All of our pre-owned safes are professionally resstored with our exclusive three coat paint process (not rolled on). All the mechanisms are professionally inspected and must pass our rigorous testing. The results are a safe that looks and feels like new.

Email [email protected] or call us at 1-800-345-6552 for professional consultation with a Hooway Safe Representative.
